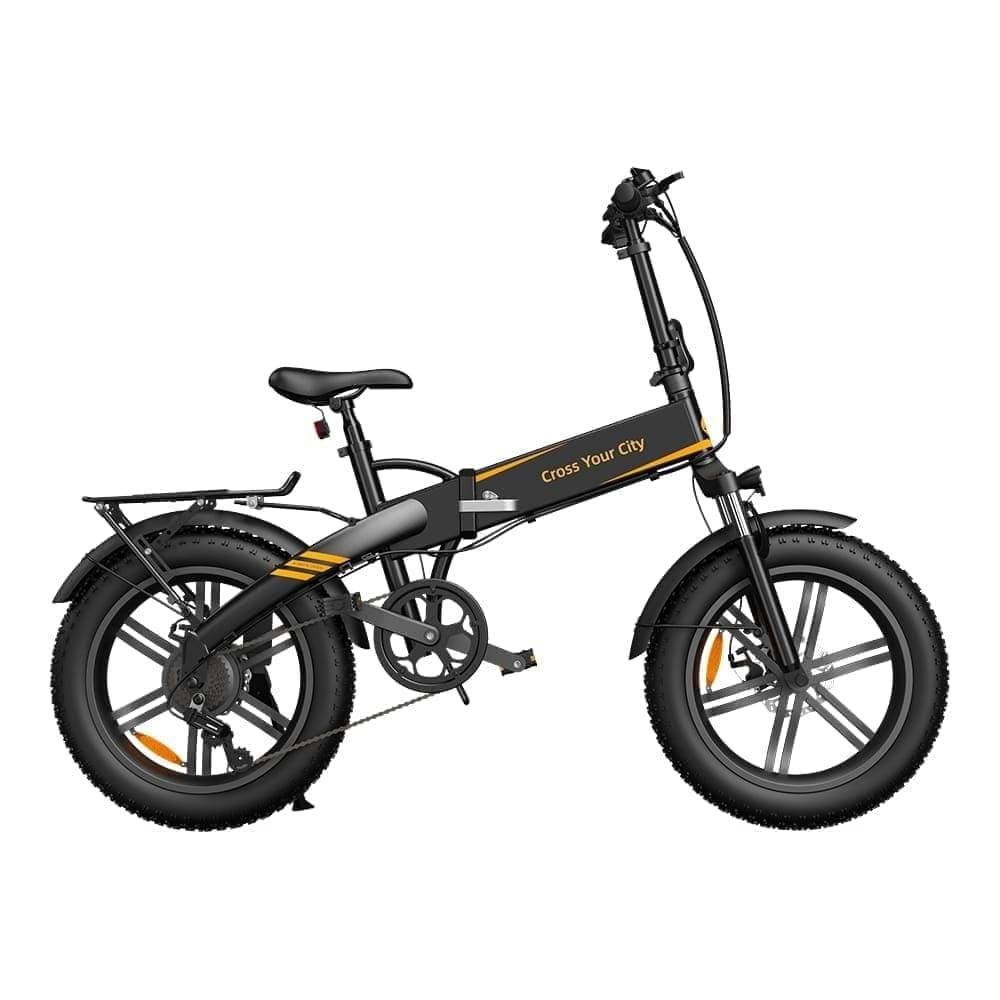

ADO A20F XE Fat Tire Folding Electric Bike Battery Life Up to 40 Miles

Colour: Black


New Upgraded ADO A20F XE Fat tires Electric Bike

Top Features

  • 2 RIDING MODES: NORMAL BIKE &POWER-ASSISTED BIKE. When in electric-assisted mode, you also have bicycle riding/pushing assistance mode to choose from. LCD meter and rotatable gear shifter make the switching easier.
  • 7-SPEED TRANSMISSION SYSTEM: Just rotate the gear shifter on the right side of the handlebar, you can exert less effort on different road conditions of the cities. Sensitive gear switch control and greater terrain adaptability ensure a quick and precise response.
  • HEIGHT&ANGLE ADJUSTABLE: The seat-post, stem, and handlebar can be adjusted to your satisfactory height and angle. NOTICE: Under the safety line and don't turn the handlebar too tightly!
  • BUILT TO LAST: 20"*4.0 low rolling resistance tires can meet your commuting and leisure needs. aluminum alloy FRAME and ergonomically designed SADDLE offer a durable and comfortable user experience.
  • REMOVABLE-BATTERY&TWO CHARGING-MODES: 36V lithium-battery with 10.4Ah capacity supports 70KM mileage in full. You can either direct-charge it on the bike or remove it to-charge.
  • CONSIDERATE: Rear-carrier design lets you no more worry about pets accessories (You can install a basket on it). Adjustable 12V-LED headlight, together with rear light, provides a safer night riding.


  • Upgraded Braking System - Upgraded mechanical disc brake 3.0 with dual-push braking system. When the speed is very fast, it also enables ADO A20F XE e-bike to stop smoothly and quickly, providing a safe and comfortable riding experience.
  • Upgraded process - Upgraded overall painting process, four spray and four baking paint process. The overall appearance of the ADO A20F XE e-bike has been improved to provide a very comfortable look and feel. When you ride outside, it can instantly attract people around you.
  • 250 W motor and replaceable battery - Electric bike is equipped with a 250 W brushless motor and a 36 V 10.4 Ah replaceable lithium-ion battery. The speed can reach 25 km / h and the driving range can reach 40-80 km. The battery can be fully charged in 6-7 hours to meet the demands of daily commuting.
  • Brake and 7-speed transmission - Mechanical disc brakes front and rear . Disc brakes are sensitive and brake quickly, which fully protects your safety. Shimano 7-speed gearbox enhances climbing ability and can smoothly change speed as needed while riding. The horn, bright LED headlights and rear brake lights ensure safe riding at night.
  • Comfortable Riding - E-Bike has a low step frame which makes the frame stable and sturdy. Improved shock absorbing front fork, height adjustable seat post and front post make riding more comfortable. The waterproof cable not only allows the bike to ride on rainy / snowy days, but also makes it easier to replace parts.


Classification Item Specification
General Brand ADO
Type 20*4.0 Inches
Model A20F XE
Colour Black/White
Vehicle Performance Dimensions L×W×H Overall unit:1740*530*1200 mm
After folding: 980*450*770 mm
Package Size 1010*490*710mm
Operating Temperature  -10~40°C
Storage Temperature  -20~50°C
Net Weight 29kg
Gross weight 34.5kg
IP Rating IPX5
Max. Speed 25km/35km (Unlock mode)
Transmission  Shimano 7 Speed
Electric range <40km
Assisting range <80km
Shock-absorption  Front Fork and Rubber pneumatic tire
Brake  Front: Mechanical disc brake
Rear: Mechanical disc brake
Charging time about 6 hours
Payload  ≤120kg
Head of Bicycle Material  Aluminum alloy
Handgrip Material  TPR
Foldable Foldable, Adjustable
Adjustable of height Yes
Throttle lever Yes
Small bell Electronic speaker
Brake handle left/Right
Mobile Phone Charging Station 5V/1A USB type A+ Charging Base
Front Wheel Drivenmethod /
Material  Aluminum alloy
Hub type Integrated molding hub
Size  20 *4.0inch
Tire  Mechanical disc brake
Brake  Motor drive wheel
Rear Wheel Drivenmethod /
Material  Aluminum alloy
Hub type Integrated molding hub
Size 20 *4.0inch
Tire Rubber pneumatic tire
Brake  Mechanical disc brake
Main Frame Material  Aluminum alloy
Type Main Girder Folding
Parking  Parking stand
Battery location Built-in main girder
Reflect Sticker  /
Max Steering Angle  60°(each side)
Rear Tale Light  /
Air pump  Yes
Foot Pad Material  Nylon
Foot Pad Type  Folding
Carrying handle Yes
Battery Material  Lithium battery
Type of batteries Removable portable charging
Battery number  40 PCS
Rated Voltage  36V
Charge cut-off voltage 42V
Rated Capacity  36V10.4Ah
Charging Temperature  0~40°C
Battery ManagementSystem Over-heating, Short circuit,
Over- current, Over-charge protection
Charger Input Voltage  100~240V, 50/60Hz
Output Voltage  42V DC
Output Current  2A
Output Power  84W
Motor Brand \
Motor Type  Hall Brushless Gear DC Motor
Rated Voltage  36V
Rated Power   CE Version: 250W (Unlock Mode: 500W);
Internation Version: 500W
Max. Power  \
Torque 45 N.m
Rated speed 380 r/min
System Control Turn On/Off  Visible button on the speed control handle
Riding Modes Switch
Front Light Switch
Display Type 886 Type HD LCD Display, Clearly under the sunshine
Display Contents  Speed, mileage, Gear, glitch
Electronic booster starting point  6 KM start (CE )(Can change to 0KM start by enduser)
Under voltage protection 31±2V
Over current protection 15±2A
Package contents

1 X A20F XE Ebike
1 X A20F XE Battery
1 X Pair of Fenders
1 X Rear Shelf

1 x English Manual
1 x Mobile Phone Holder
1 x Air Pump
1 x 42V 2A Battery Charger
