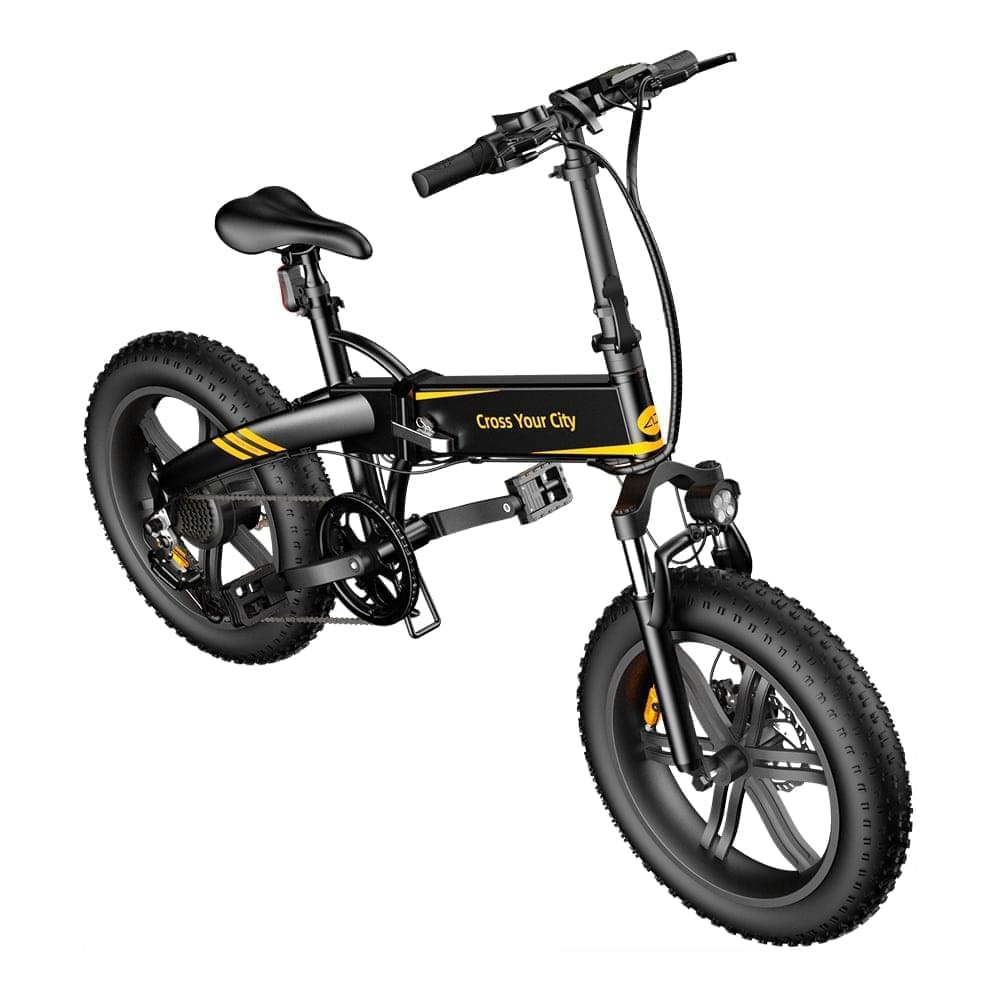

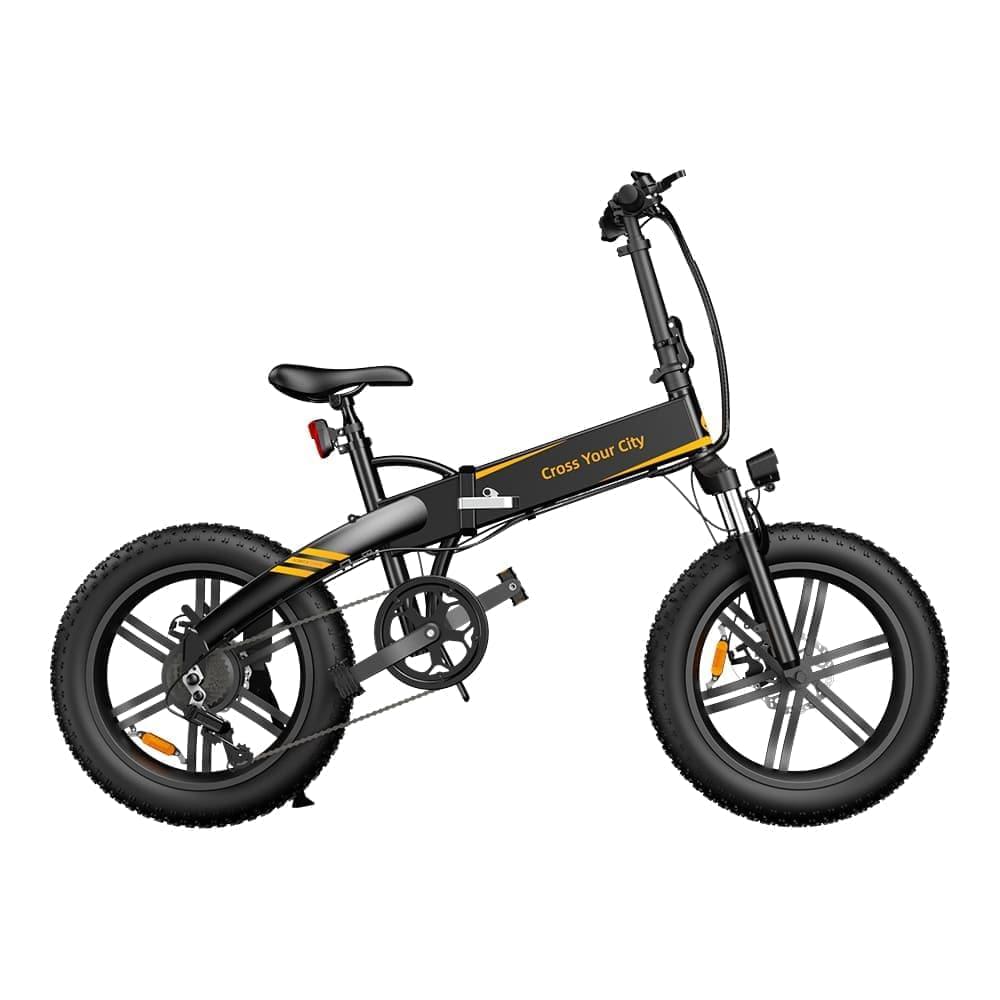

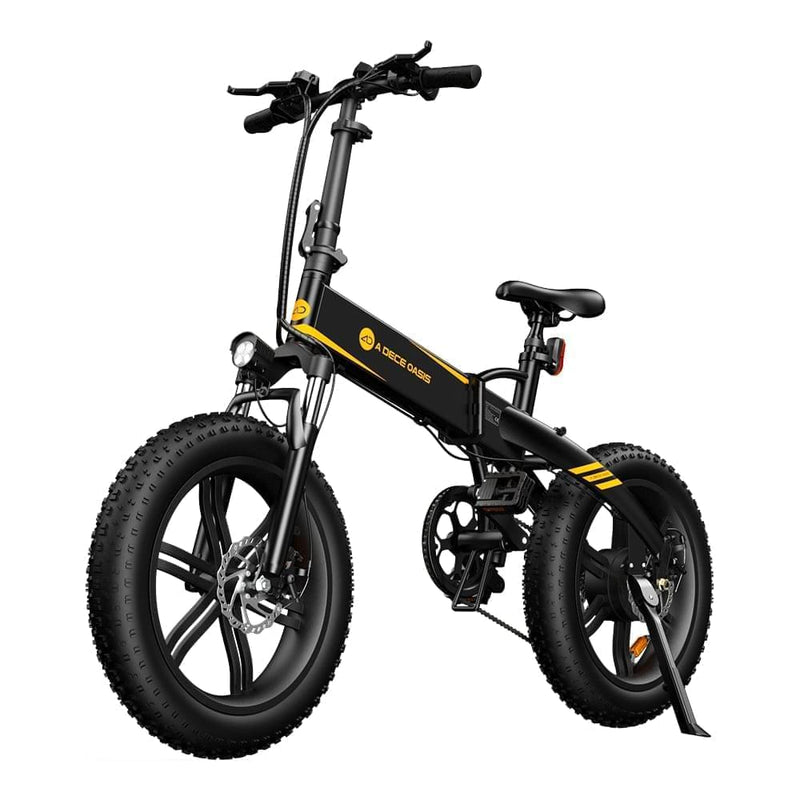

ADO A20F+ 20 Inches Fat Tire Folding Electric Bike With Mudguard Battery Life Up to 40 Miles

Save £150

Color: Black
£1,049.99 £1,199.99


Top Feature
  • 20*4.0 Inches Fat tires with Integrated melding hub
  • 250W Power rate Gear Motor with 380 r/Min speed
  • Front fork and addle tube double Shock-absorption
  • Battery Life Up to 40 Miles
  • Top Speed 15.5 mph


  • 250 W motor and replaceable battery - Electric bike is equipped with a 250 W brushless motor and a 36 V 10.4 Ah replaceable lithium-ion battery. The speed can reach 25 km / h and the driving range can reach 40-80 km. The battery can be fully charged in 6-7 hours to meet the demands of daily commuting.
  • Brake and 7-speed transmission - Mechanical disc brakes front and rear . Disc brakes are sensitive and brake quickly, which fully protects your safety. Shimano 7-speed gearbox enhances climbing ability and can smoothly change speed as needed while riding. The horn, bright LED headlights and rear brake lights ensure safe riding at night.
  • 2 Working Modes - Pedal Assisted Bike & Normal Bike. There are 3 speed levels for pedal assist modes. You can freely switch between different riding modes and speed levels via the LED meter.
  • Comfortable Riding - E-Bike has a low step frame which makes the frame stable and sturdy. Improved shock absorbing front fork, height adjustable seat post and front post make riding more comfortable. The waterproof cable not only allows the bike to ride on rainy / snowy days, but also makes it easier to replace parts.
  • Warranty and Assembly - The motor and battery are guaranteed for one year, and other parts are damaged within one year for free replacement. The after-sales centre is located in Bruchsal. If you have any questions, please contact the after-sales service email, after-sales emails will be answered within 12 hours.


Classification Item Specification
General Brand ADO
Type 20*4.0 Inches
Model A20F

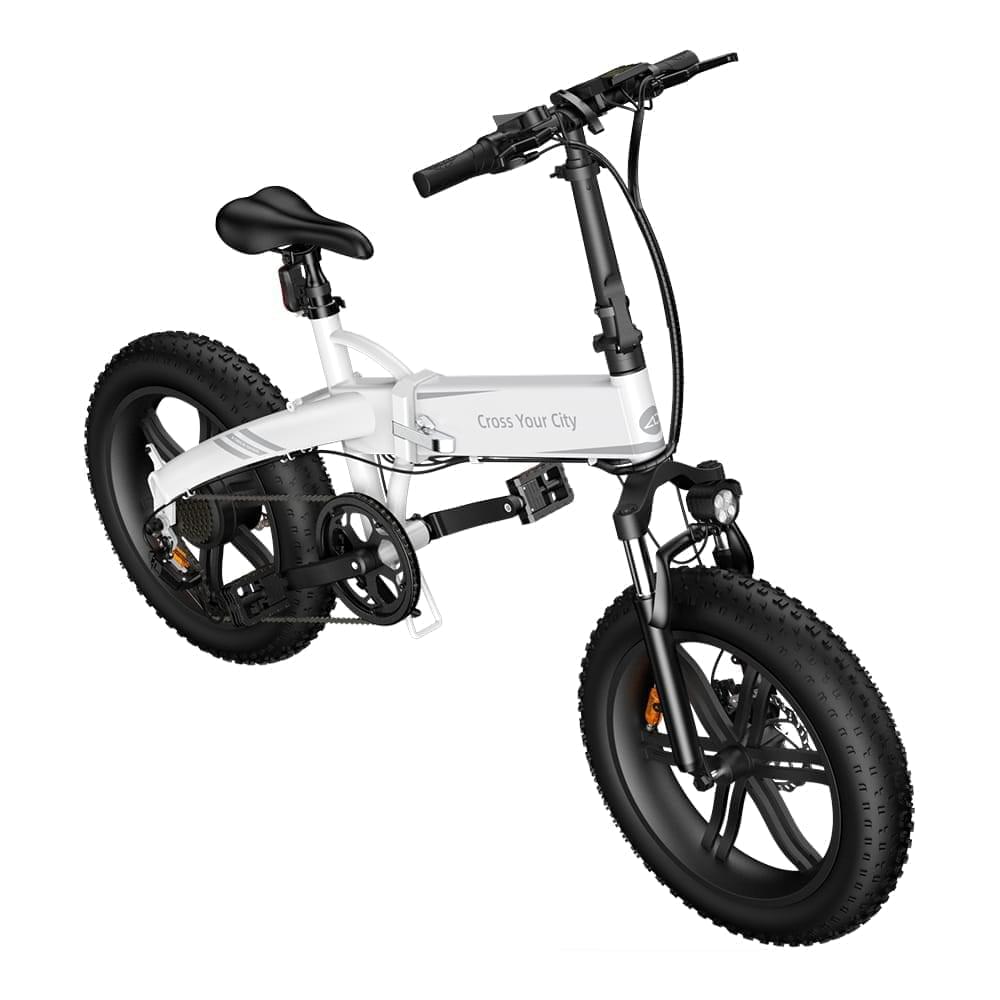

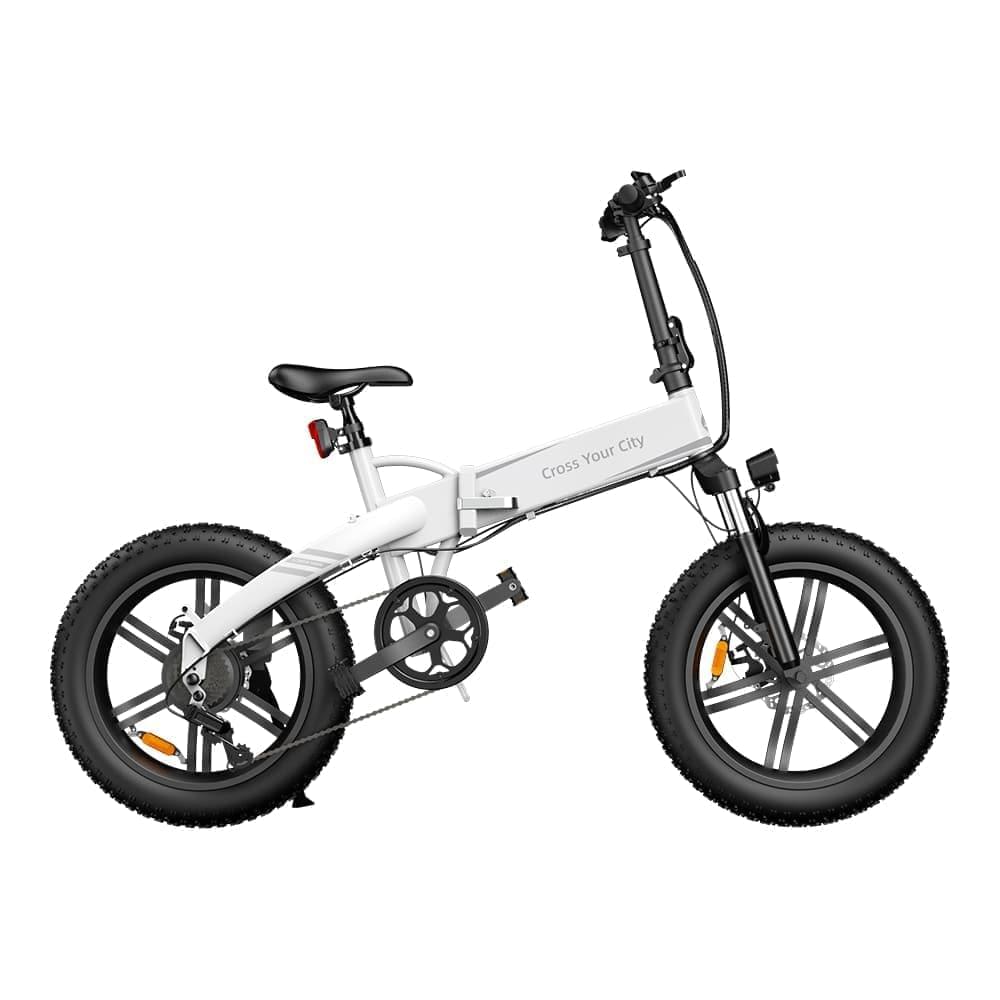

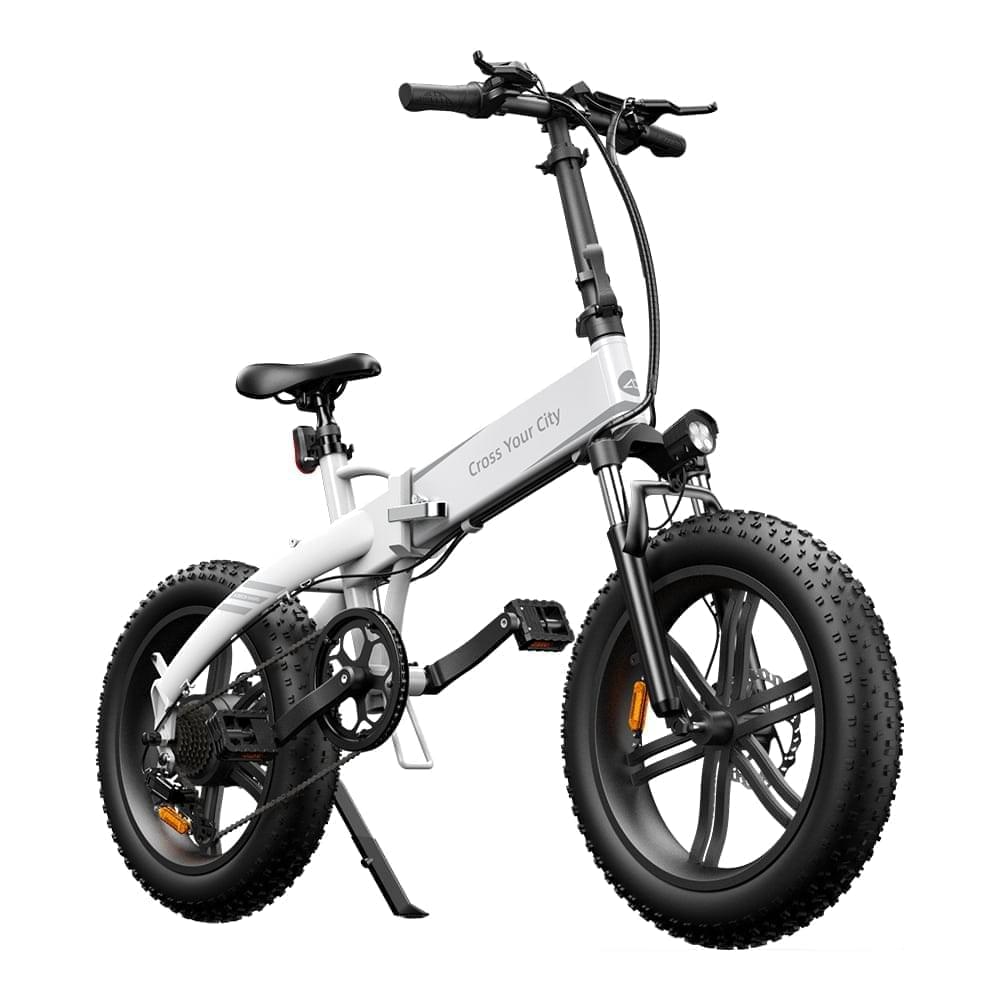

Color Black/White
Vehicle Performance Dimensions L×W×H Overall unit:1740*530*1200 mm

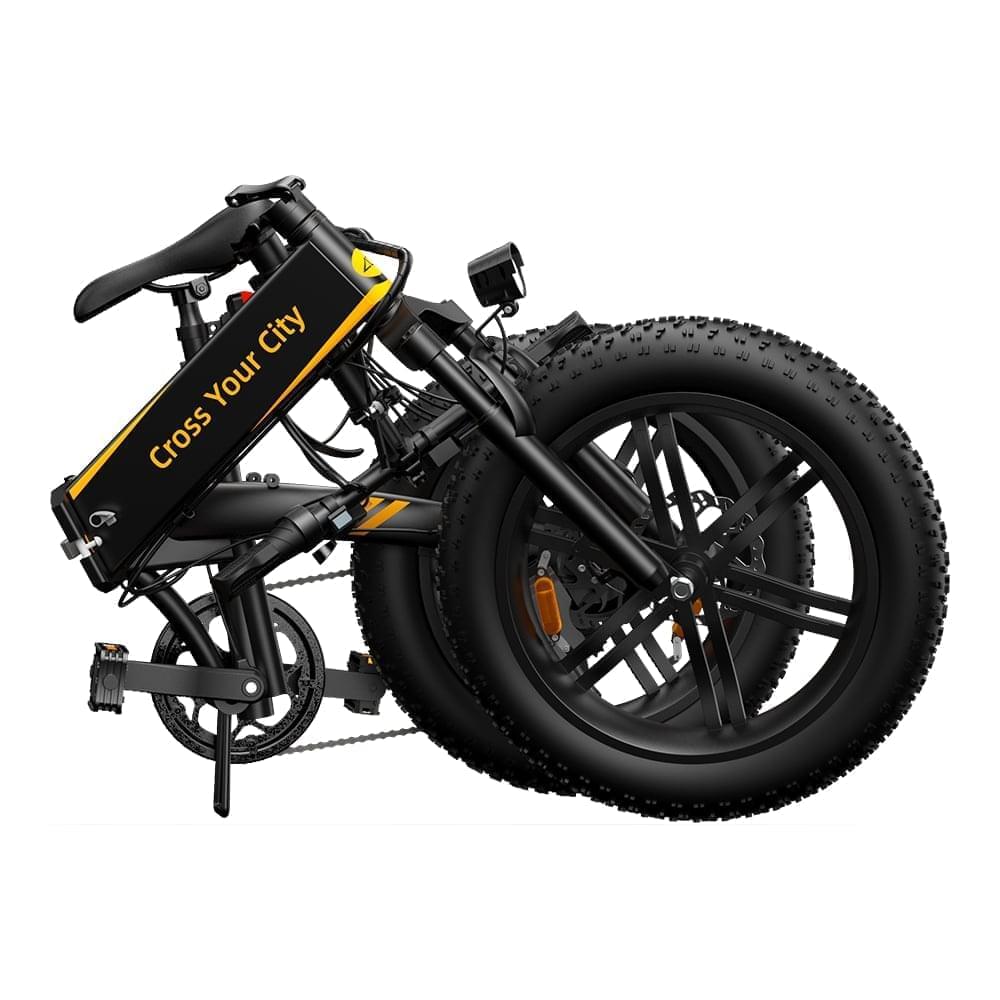

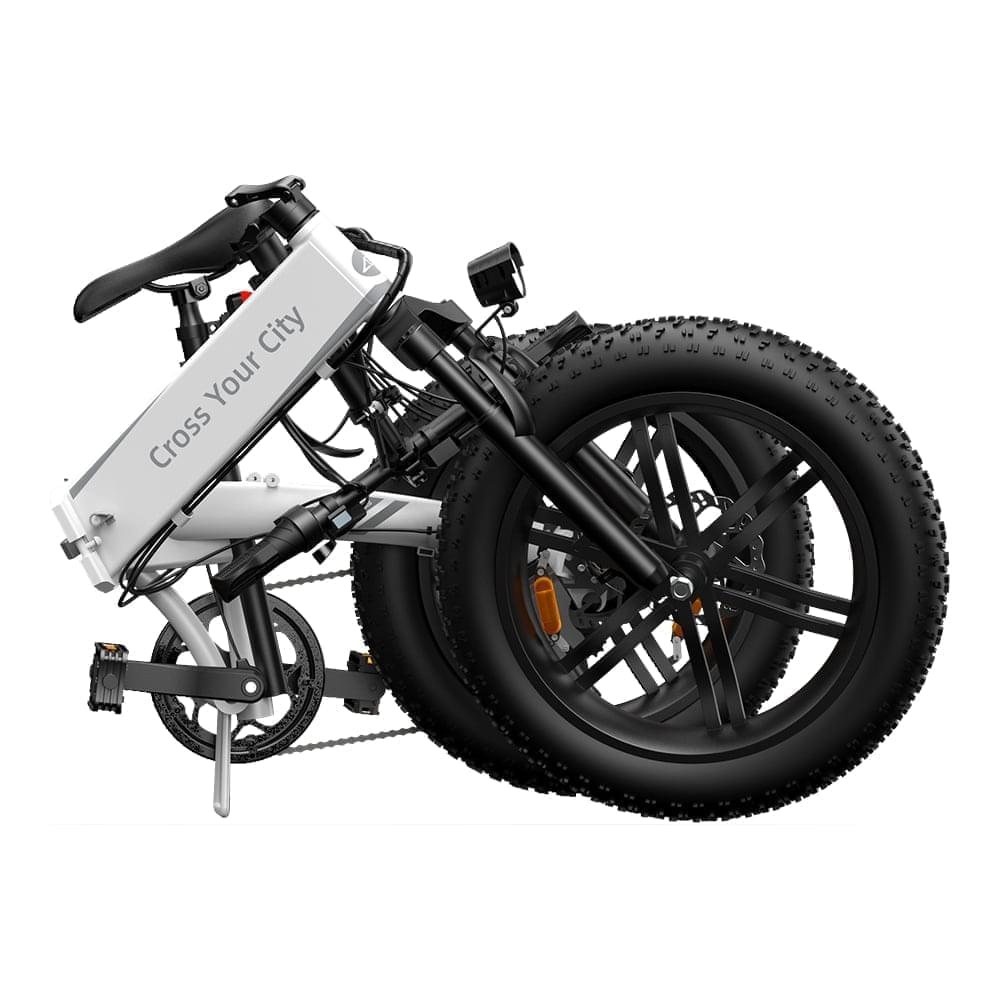

After folding: 980*450*770 mm
Package Size 1010*490*710mm
Operating Temperature  -10~40°C
Storage Temperature  -20~50°C
Net Weight 29kg
Gross weight 34.5kg
IP Rating IPX5
Max. Speed 25km/35km (Unlock mode)
Transmission  Shimano 7 Speed
Electric range <40km
Assisting range <80km
Shock-absorption  Front Fork and Rubber pneumatic tire
Brake  Front: Mechanical disc brake
Rear: Mechanical disc brake
Charging time about 6 hours
Payload  ≤120kg
Head of Bicycle Material  Aluminum alloy
Handgrip Material  TPR
Foldable Foldable, Adjustable
Adjustable of height Yes
Throttle lever Yes
Small bell Electronic speaker
Brake handle left/Right
Mobile Phone Charging Station 5V/1A USB type A+ Charging Base
Front Wheel Drivenmethod /
Material  Aluminum alloy
Hub type Integrated molding hub
Size  20 *4.0inch
Tire  Mechanical disc brake
Brake  Motor drive wheel
Rear Wheel Drivenmethod /
Material  Aluminum alloy
Hub type Integrated molding hub
Size 20 *4.0inch
Tire Rubber pneumatic tire
Brake  Mechanical disc brake
Main Frame Material  Aluminum alloy
Type Main Girder Folding
Parking  Parking stand
Battery location Built-in main girder
Reflect Sticker  /
Max Steering Angle  60°(each side)
Rear Tale Light  /
Air pump  Yes
Foot Pad Material  Nylon
Foot Pad Type  Folding

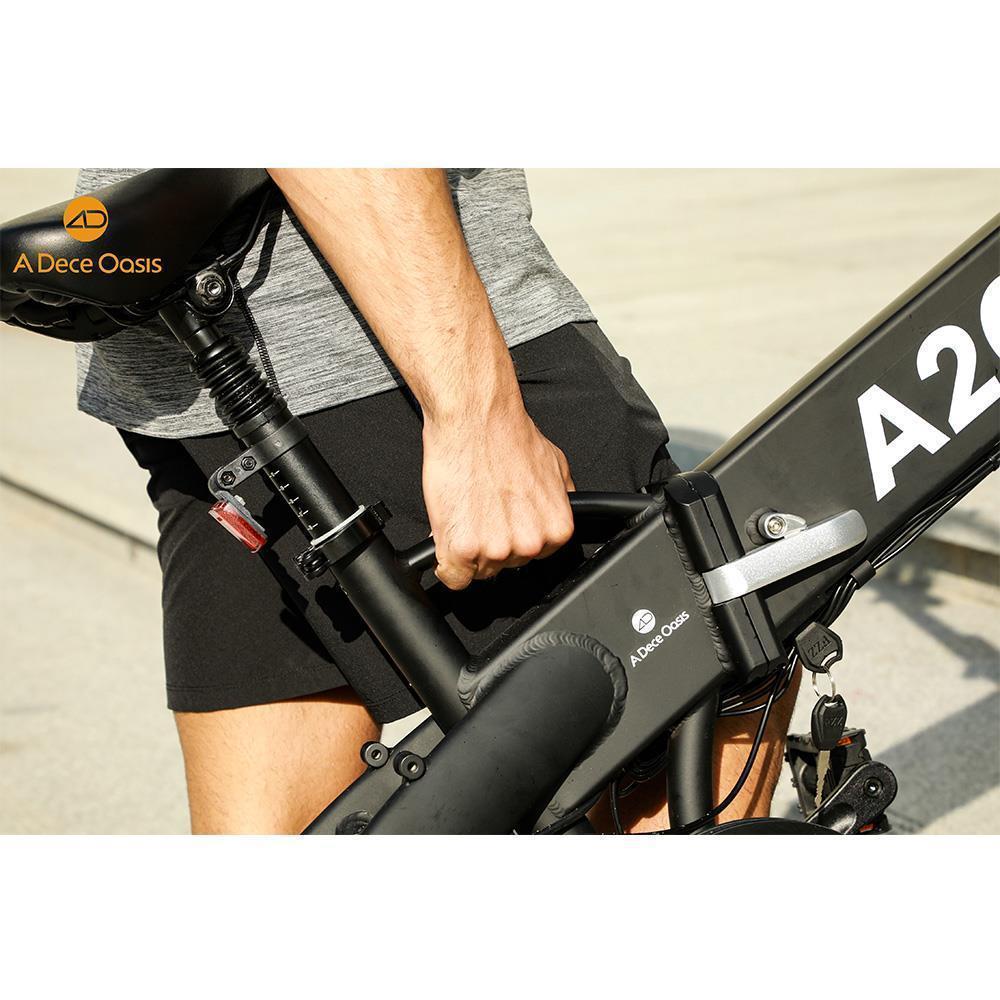

Carrying handle Yes
Battery Material  Lithium battery
Type of batteries Removable portable charging
Battery number  40 PCS
Rated Voltage  36V
Charge cut-off voltage 42V
Rated Capacity  36V10.4Ah
Charging Temperature  0~40°C
Battery ManagementSystem Over-heating, Short circuit,
Over- current, Over-charge protection
Charger Input Voltage  100~240V, 50/60Hz
Output Voltage  42V DC
Output Current  2A
Output Power  84W
Motor Brand \
Motor Type  Hall Brushless Gear DC Motor
Rated Voltage  36V
Rated Power   CE Version: 250W (Unlock Mode: 500W);
Internation Version: 500W
Max. Power  \
Torque 45 N.m
Rated speed 380 r/min
System Control Turn On/Off  Visible button on the speed control handle
Riding Modes Switch
Front Light Switch
Display Type 886 Type HD LCD Display, Clearly under the sunshine
Display Contents  Speed, mileage, Gear, glitch
Electronic booster starting point  6 KM start (CE )(Can change to 0KM start by enduser)
Under voltage protection 31±2V
Over current protection 15±2A
Package contents

1 x A20F+ Electric bicycle

1 x A20F Electric bicycle
1 x Front Fender
1 x Rear Fender

1 x English Manual
1 x Charger
